CHM Machinery Cut Size Paper Sheeter And Packaging Machine
CHM Machinery Cut Size Paper Sheeter And Packaging Machine

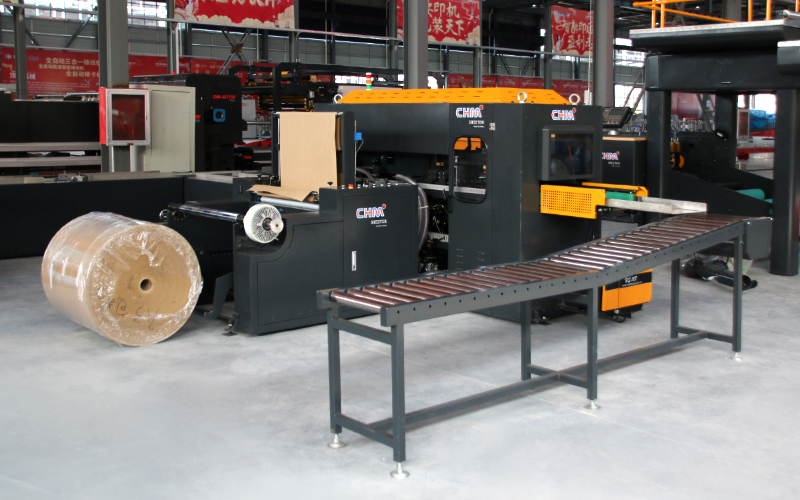

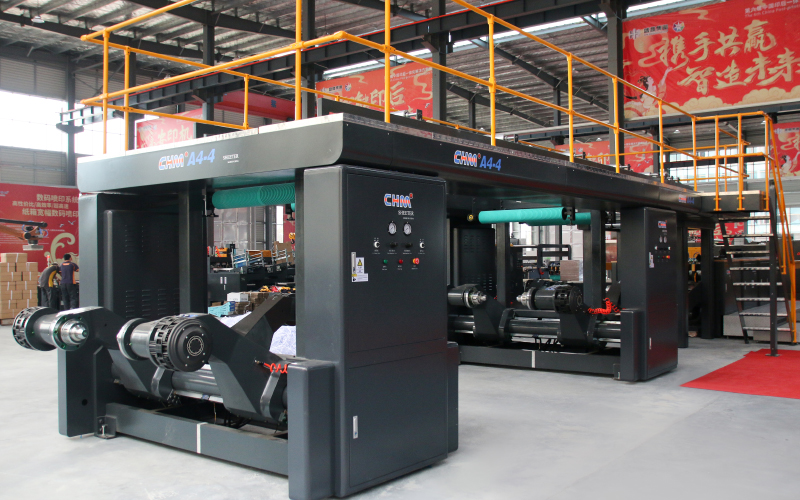

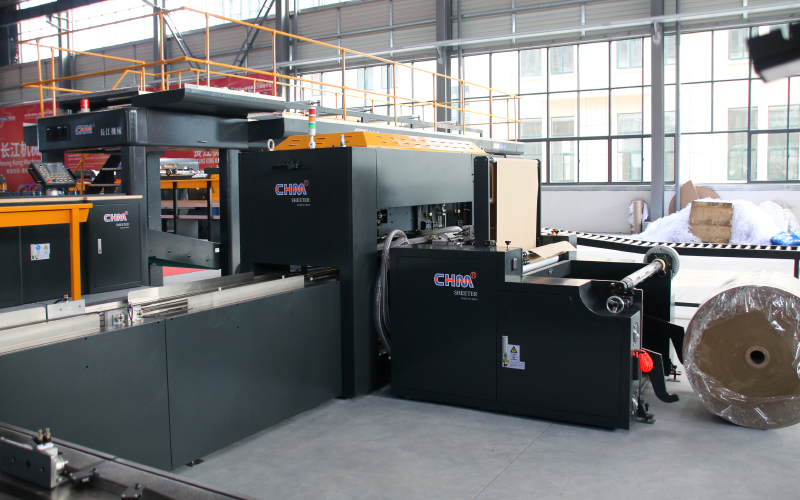

CHM-A4-4/5 is a full automatic cut size sheeter and wrapper.It can convert A4,A3,Letter size and so on various size copy paper,office paper.The equipment is designed for large capacity printer houses and paper mills.
CHM Machinery offer completely cut size paper sheeter cutter and wrapping solutions.Our machine convert copy paper reels into finished size reams in the pallet with high speed and cutting precision.
CHM machinery also can offer various paper roll to size sheets cutting solutions for large capacity paper mills,paper converters,smaller FFB carton printing houses,books,magazine publishing companies.
Technical indicators
| Cutting Type | CHM-A4-4 | CHM-A4-5 |
Paper Width | 845-850mm | 1055-1060mm |
Production speed | Max280m/min | Max280m/min |
Cutting accuracy | ±0.2mm | ±0.2mm |
Paper Rolls number | 4 Rolls | 5 Rolls |
Pocket | 4 Pocket | 5 Pocket |
Output of the ream | Max 37 Reams/min | Max 47 Reams/min |
Power | 32kw+18kw+19kw | 34kw+18kw+19kw |
Dimension（LxWxH） | 17681mm*4140mm*3190mm | 20114mm*4355mm*3190mm |

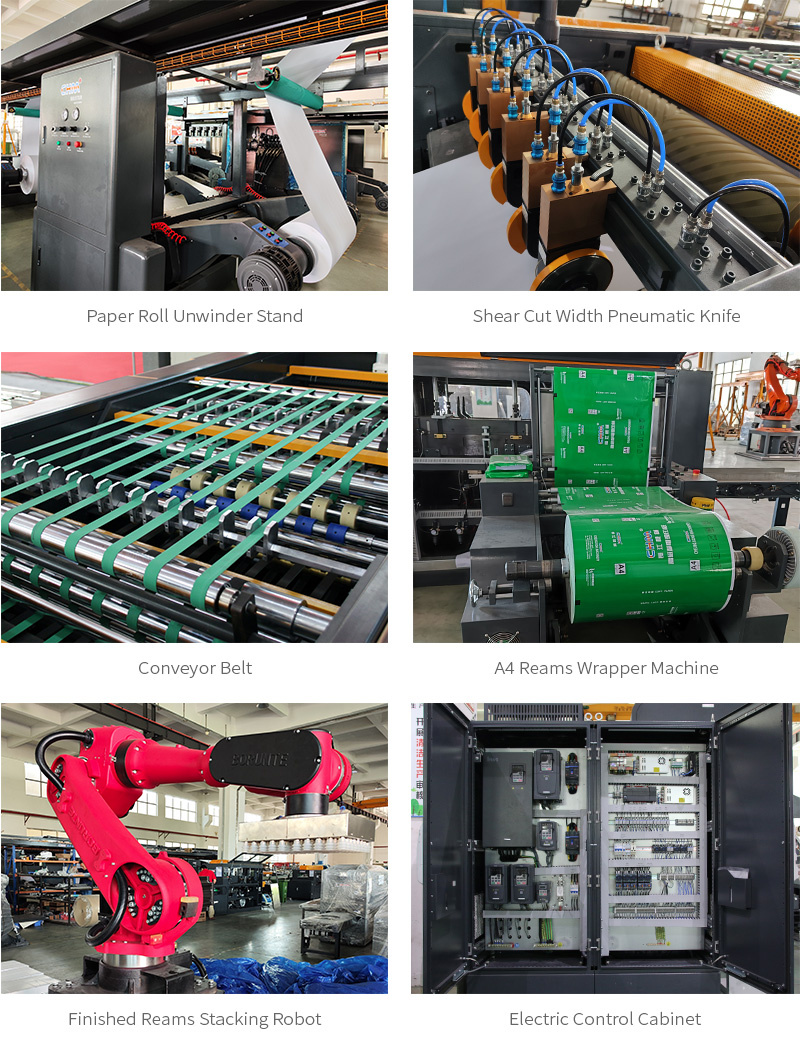

Machine Deteils
