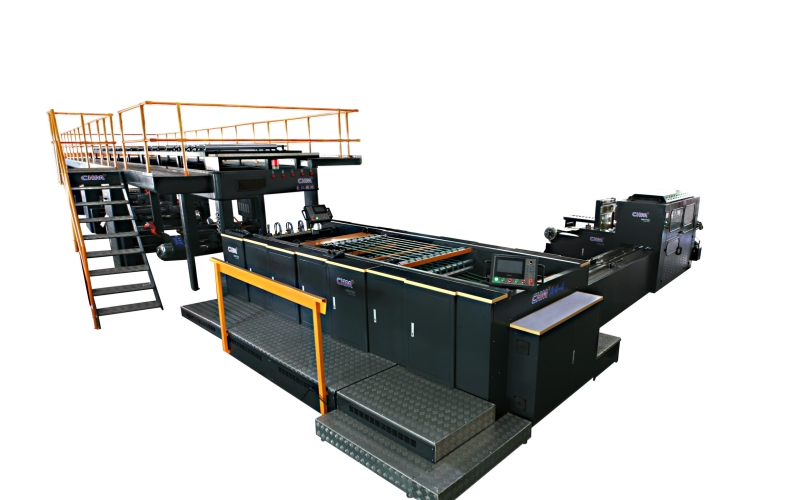

High Speed Full Automatic CHM-A4-5(5) Model A4 Copy Paper Production Line
Full Automatic CHM-A4-5(5) Model A4 Copy Paper Production Line
Description：

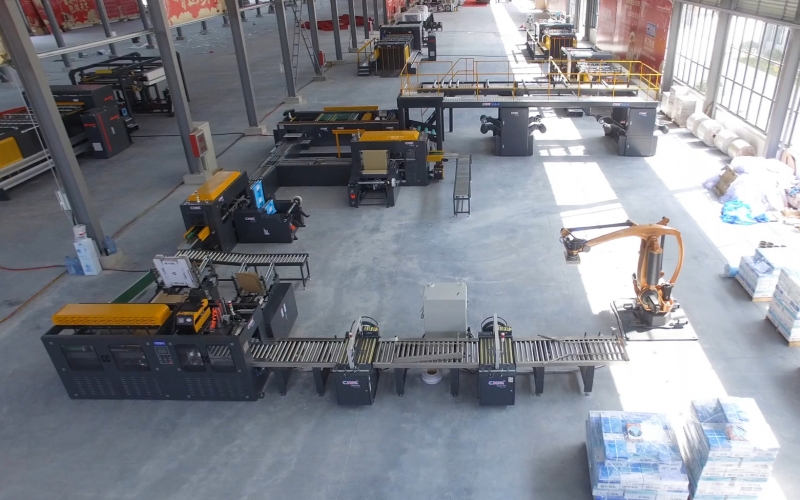

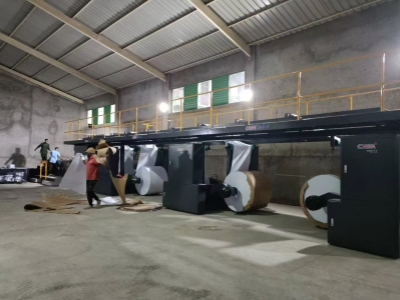

CHM-A4-5(5) model is our most advanced full automatiz A to Z production line. It is designed for giant paper mills and professional A4 copy paper production companies.The high capacity A4 copy paper production line includes A4 size paper sheets cutting unit,A4 reams wrapping unit,boxes packaging unit,boxes stripping unit and robot pallets stacking unit. Operators just need load paper rolls in the machine ,machine will output finished A4 copy paper boxes stacked in pallets.
Video:

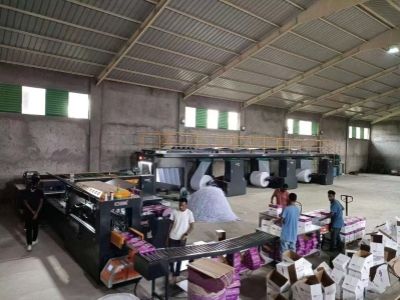

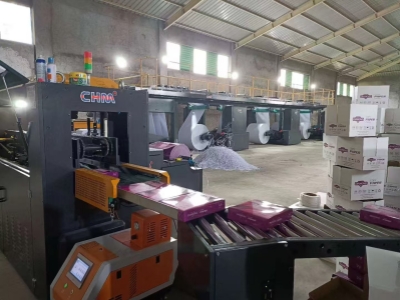

Clients Cases:
Ethiopia Algeria
South Sudan Egypt
Parameter:
| Model Name | CHM-A4-4/4 | CHM-A4-4/5 | CHM-A4-5/5 |
| Paper Roll Width | 845-850mm | 845-850mm | 1055-1060mm |
| Mechanical Speed | 280-300m/min | 280-300m/min | 280-300m/min |
| Production Speed | 200-230m/min | 200-230m/min | 200-230m/min |
| Rolls Quantity | 4 Rolls | 5 Rolls | 5 Rolls |
| Capacity | 30 reams/min | 37 reams/min | 42 reams/min |
Machine Details:

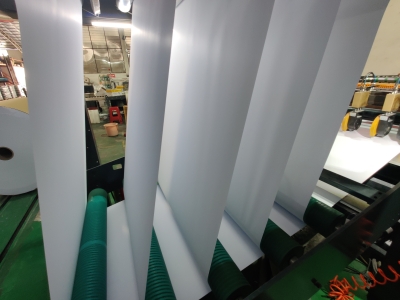

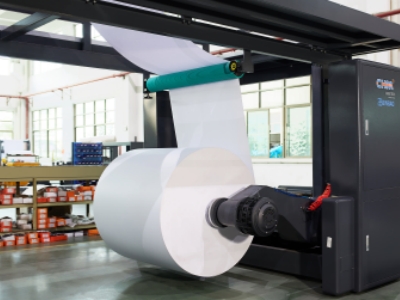

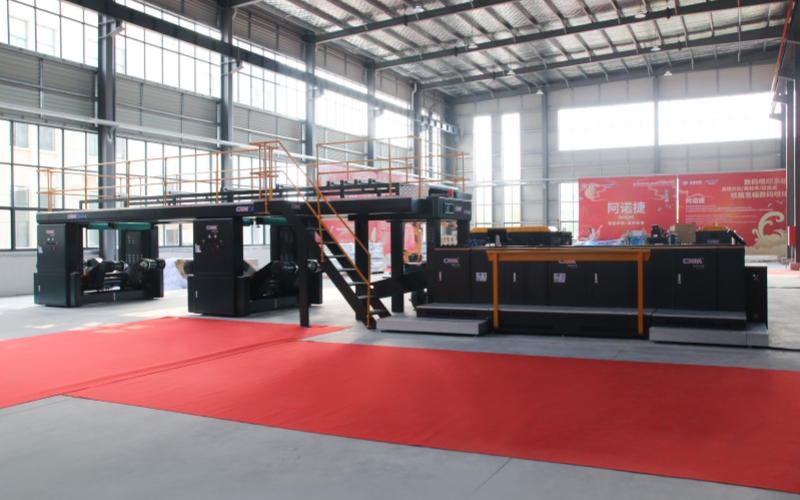

Paper Rolls Unwinder Stands Paper Web Feeding

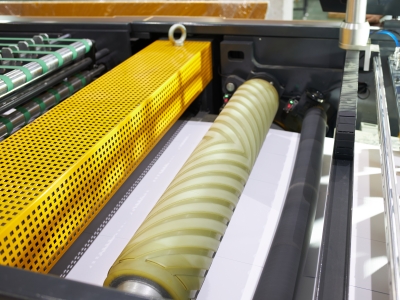

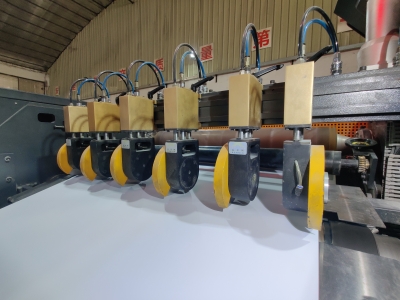

A4 Size Slitting Knives Cross Cutting Knife

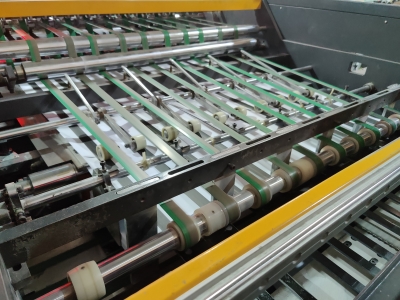

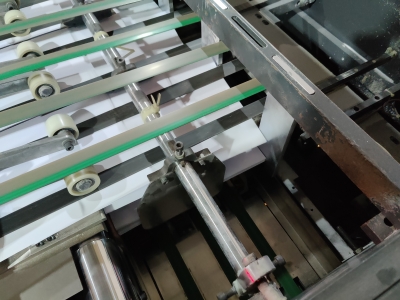

Conveyor Belt A4 Paper Sheets Collector

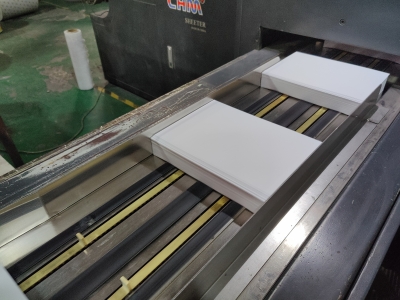

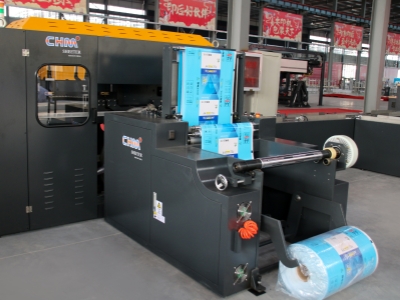

A4 Paper Reams A4 Paper Reams Wrapper Machine

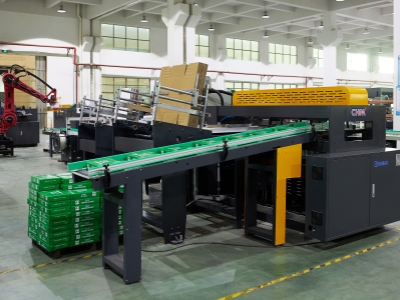

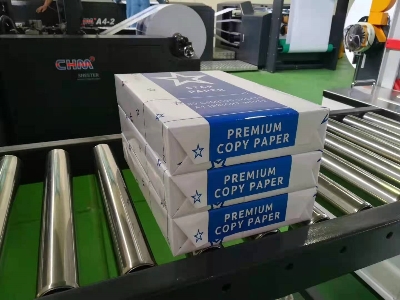

Wrapped A4 Copy Paper Reams A4 Reams Carton Boxes Machine

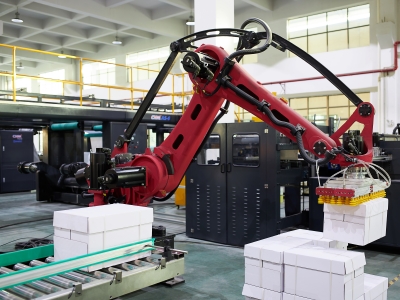

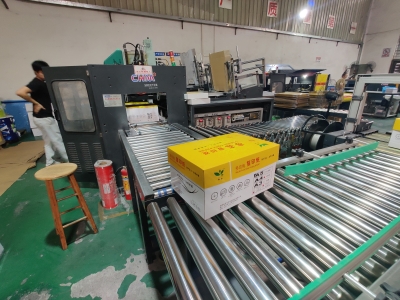

Robot Stacking Pallets A4 Reams Carton Boxes
