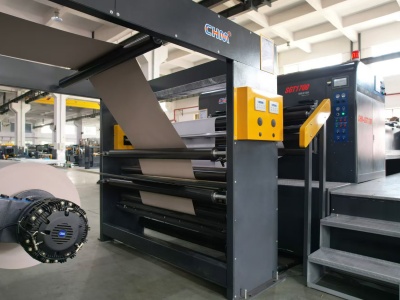

CHM-SGT Model Double Rotary Blade Paper Roll Sheeter Cutter Machine
CHM-SGT Model Double Rotary Blade Paper Roll Sheeter Cutter Machine
Description：
CHM-SGT1400/1700/1900 High Precision Synchronize-fly Sheeter featuresfibre-less and clean cuts with high dimensional precisions. Best for board paper, art paper, kraft paper and packing paper or board etc.
Technical Specification:
CHM Model | CHM-SGT1400 / CHM-SGT1700 / CHM-SGT1900 |
Cutting way | Upper and lower rotary cutting mechanism |
| Refence weight of cutting paper | 200-1000GSM |
Cutting accuracy | ±0.5mm |
Max cutting speed | 300sheets/min |
| Max.cutting meter speed | 300m/min |
| Cutting length range | 450-1650mm |
| Max scroll diameter | 1800m |
Stacking height of paperboard | 1300mm |
| Max.paper cutting width | 1400mm / 1700mm / 1900mm |
Weight | 15000kg / 17000kg / 18400kg |
| Dimension (L x W x H) | 14453mm*4675mm*2350mm / 14453mm*4975mm*2350mm / 14453mm*5175mm*2350mm |
Machine Details：

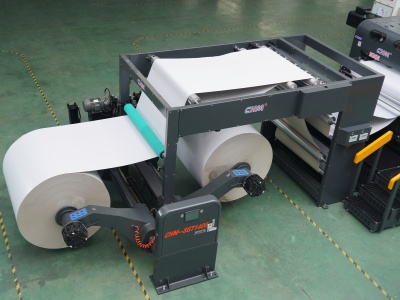

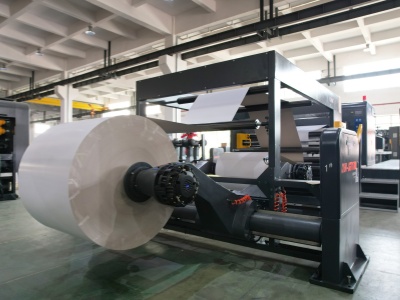

Double-arm hydraulic shaftless Unwind Stand

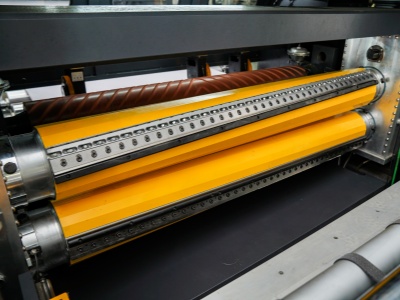

High precision double gyratory cross-cutting knife Auto-EPC (Edge Paper Control)

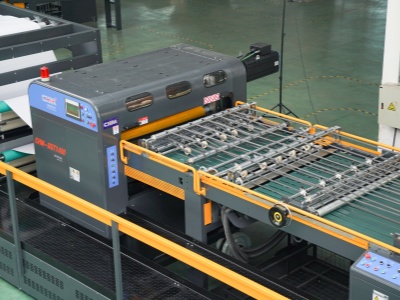

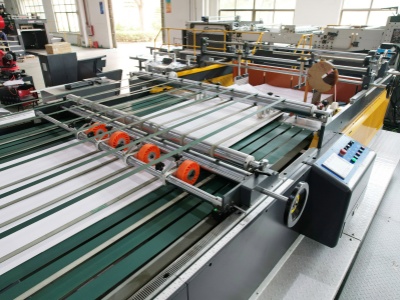

Paper conveying equipment

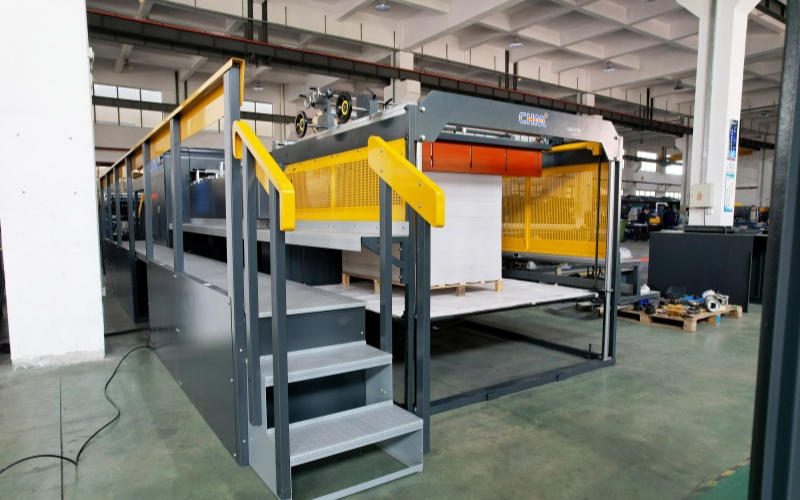

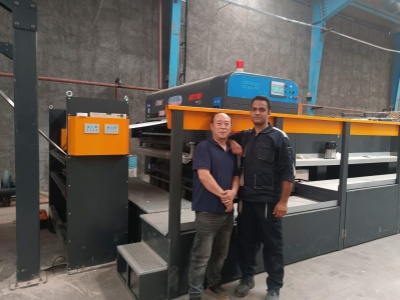

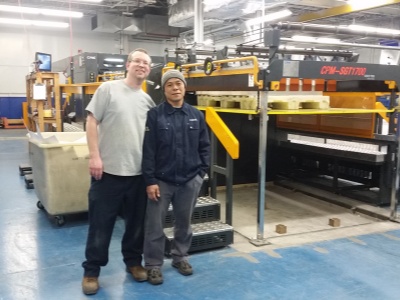

Happy Client Case:

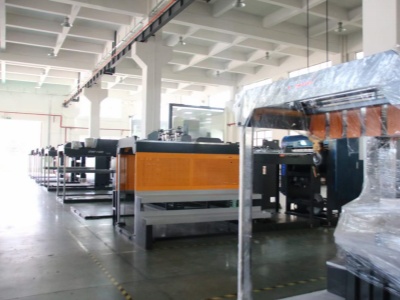

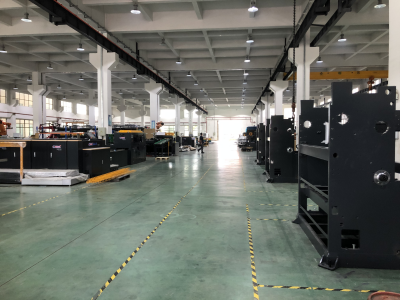

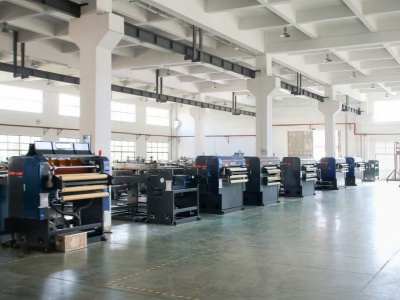

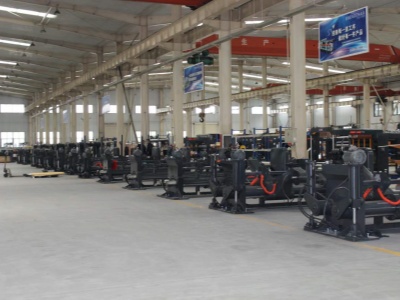

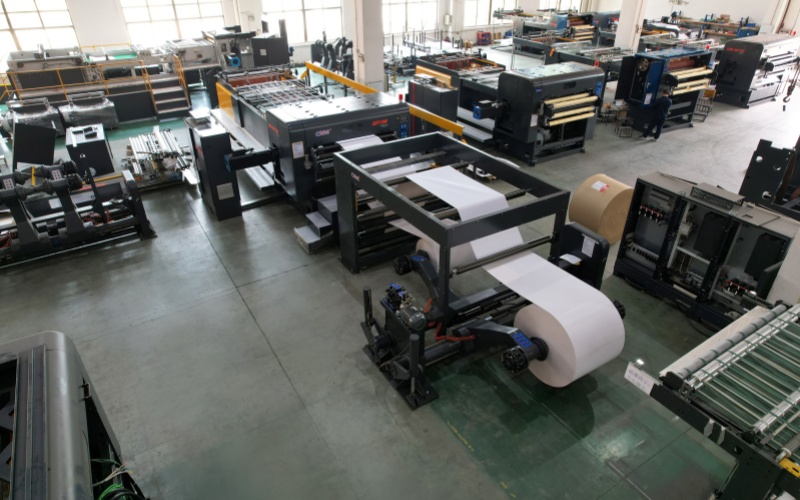

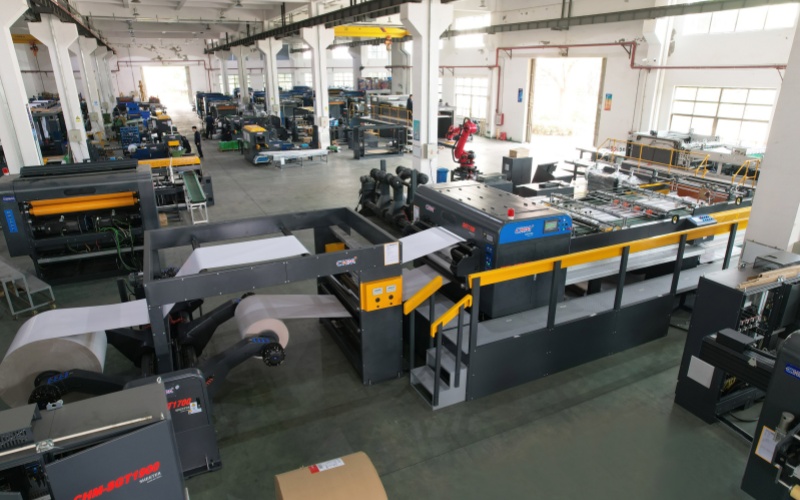

Factory：

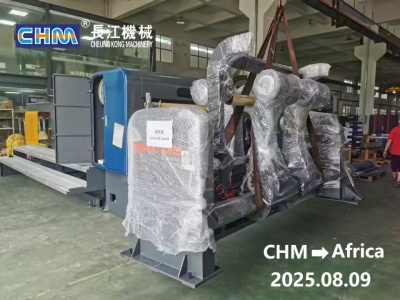

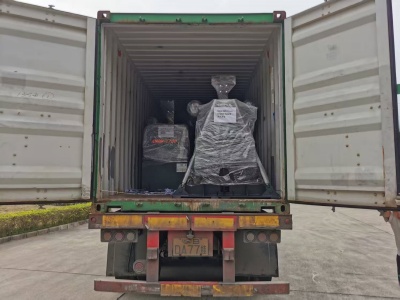

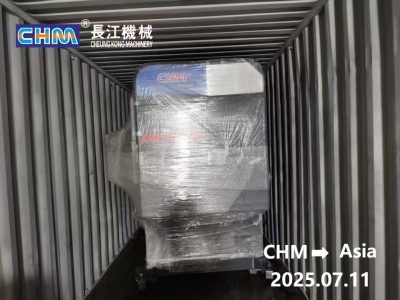

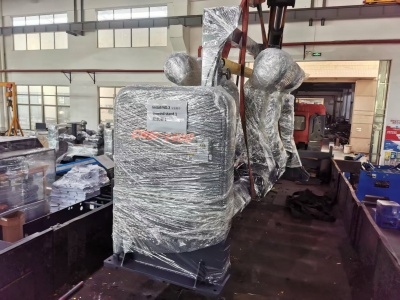

Packaging and Shipping:
