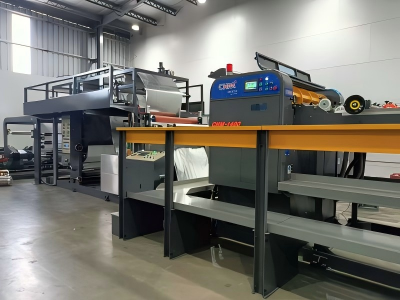

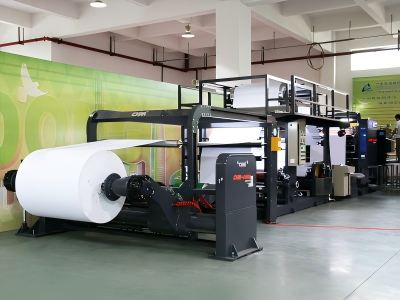

Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit

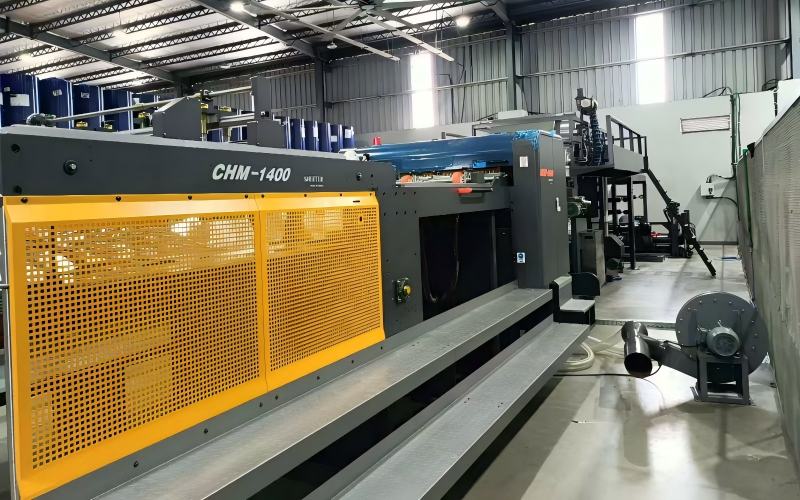

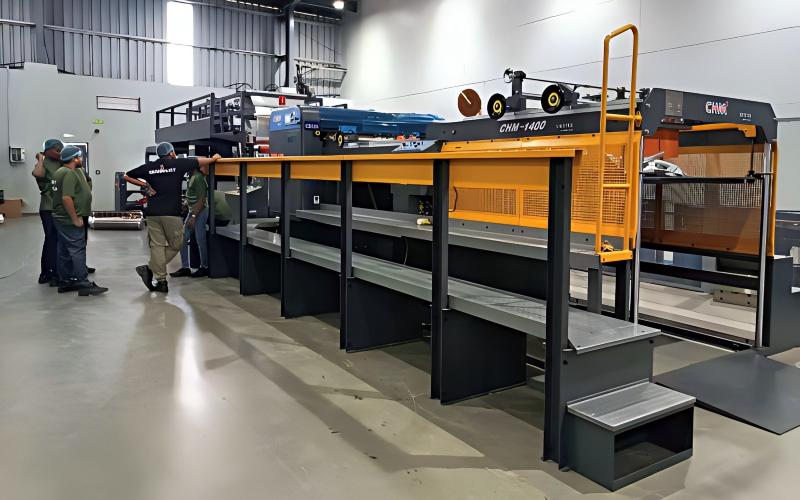

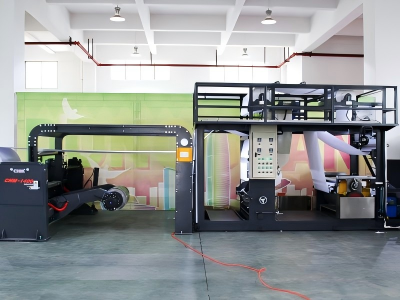

This is a customize paper roll to size sheets cutting machine for wet strength paper rolls.We added an online embossing unti in our standard CHM-1400 model paper roll sheeting cutting machine.This custom-designed machine can perform both cutting and embossing simultaneously.

Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit

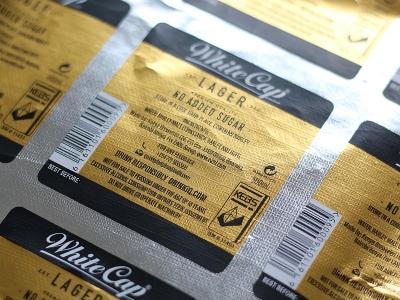

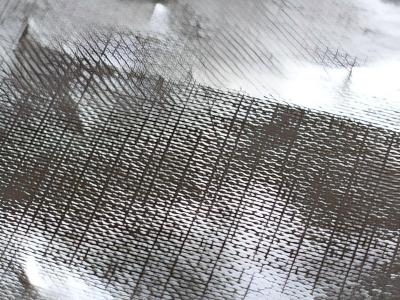

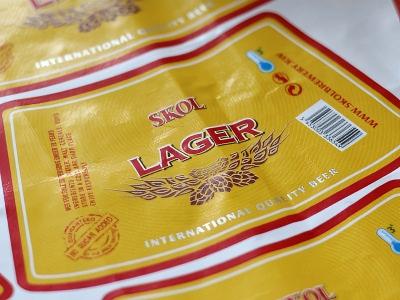

Typically, beer bottle neck label manufacturers emboss the raw materials to increase surface roughness, prevent labels from sticking together, and enhance the adhesive effect. My Kenya client hope to finish roll to sheets cutting and embossing at same time.

Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit



Embossing Machine Technical Parameters:

1.Paper Range

:

80-300GSM

2.Cutting Length

:

300-1500MM

3.Coil Diameter

:

1400MM

4.Coil Tension

:

200(M/MIN)

5.Coil Weight

:

1200KG

6.Main Machine Power

:

7.5KW

7.Hot Drying Cylinder Power

:

42KW

8.Machine Weight

:

13000KG

Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit


FAQ;

1,Can I use the cutting and embossing functions separately?

Answer:Yes, you can use the cutting function individually based on your production needs.

 Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit

2,Does the machine have color mark tracking functionality?

Answer:Yes, to improve cutting accuracy, this equipment is equipped with a printing mark tracking function controlled by a motion controller. The cutting position is adjusted according to changes in the printing marks.

Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit

3,I need to press different patterns during production. How do I do that?

Answer:Yes, you need to prepare multiple embossing rollers for different embossing patterns.

Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit Wet Strength Paper Roll Sheeter Cutter Machine With Online Embossing Unit
